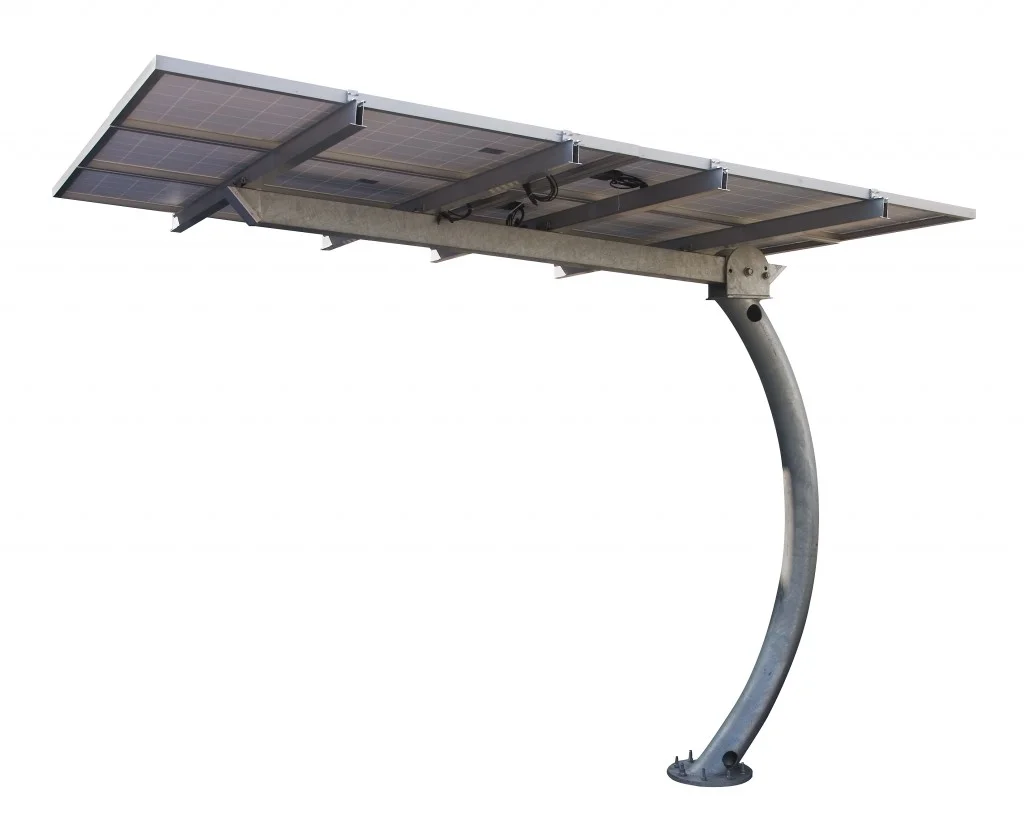

KRONOS Carport System

The KRONOS "Single Column / Stand Alone" residential carport system can fit 6 or 8 modules. KRONOS is ideal for driveways or backyards, for shading and electrical power, and is available with 0, 5, or 10 degree tilt.



bENEFITS

  • HOT dipped galvanized or G90 steel, with excellent outdoor and marine environment protection

  • Compact for smaller areas

  • Provides shading for your car or backyard needs

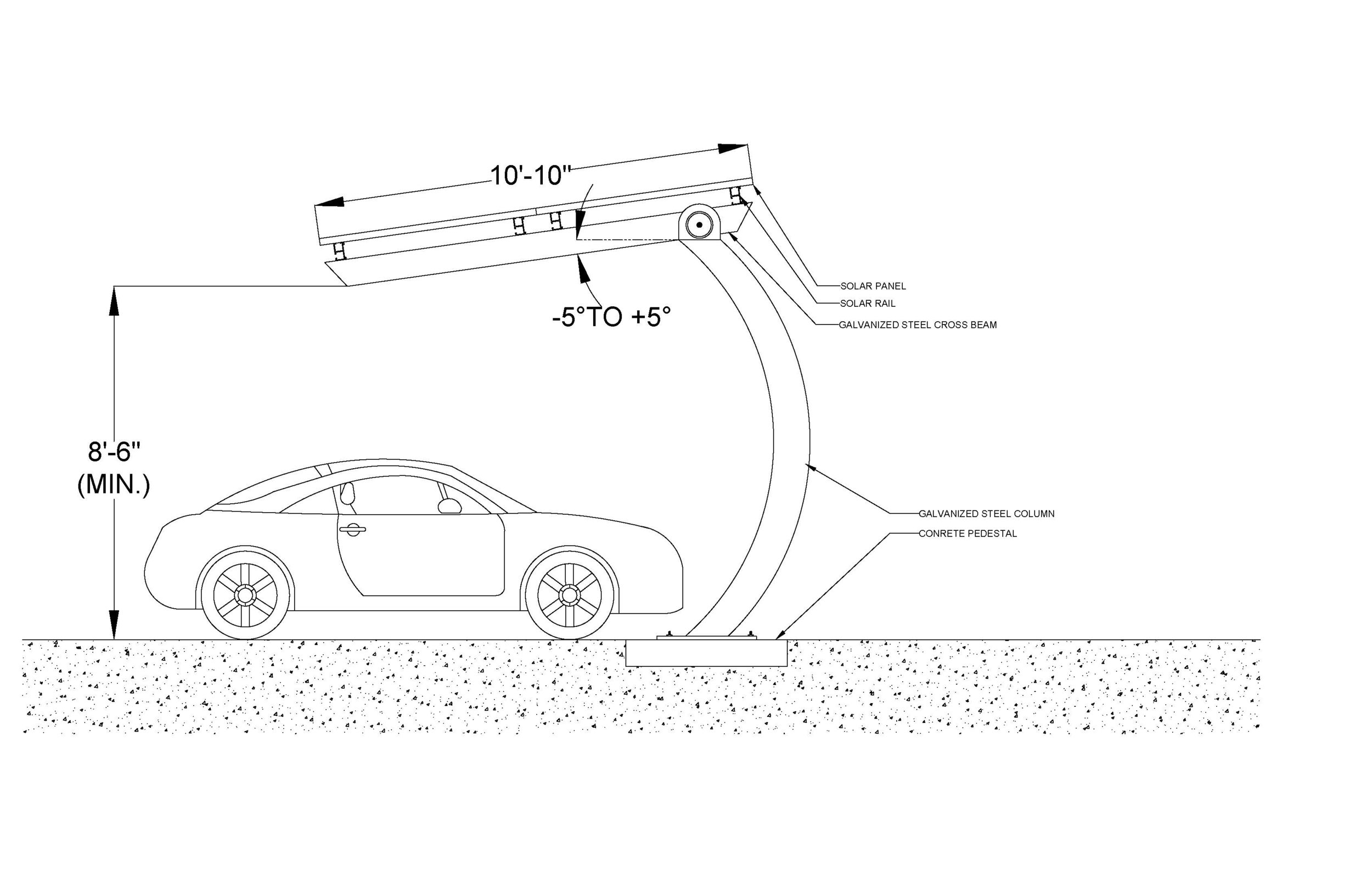

  • Roof Inclination: 0,5,10 degrees

  • Height Clearance: 8’5” min to 11’5” max

  • Depth: 140”

  • High strength galvanized steel structure, able to withstand 110mph wind, with aluminum and stainless steel to support solar panels

  • Options: lighting, slide in purlins, end cap, and custom colors available

  • Configuration: Single vehicle carport, with single cantilever side support, which gives an aesthetically pleasing appearance

  • Certifications: Structural engineering stamp available in several states

  • Slide-in solar purlins drastically reduce installation time

  • Lighting and EV Charging Station Capable

  • Available in 0, 5, and 10 degrees

  • Easy to install

  • 15 year warranty with minimum 20 year expected life

  • Space to Column ratio: 1:1

  • Versatile Structure: Useful as driveway shade, carports, bike racks, bus stops, EV charging stations, backyard shade/patio, park bench shade structures all while generating electrical power

  • Targeted for residential customers; scalable for commercial installation
    Panel Type: 60, 72 cell in portrait orientation

  • Power generated (per kwh) and dependent on panel wattage and location of installation
