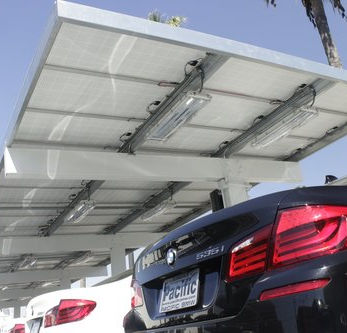

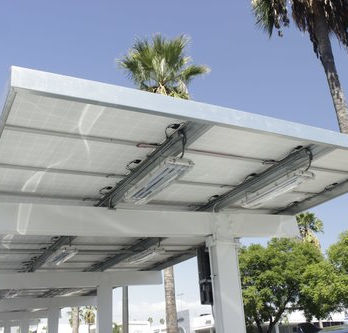

LETO SEMI-CANTILEVER
The LETO "Semi-Cantilever" is a double column, single cantilever carport system.

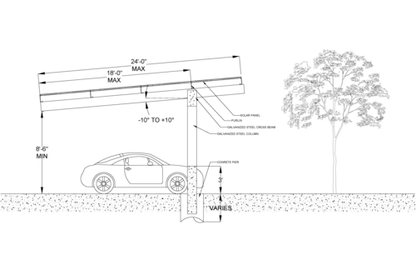

LETO is ideal for commercial spaces requiring shade for the entire parking lot. It is designed to span two parking spots (18ft) and can be constructed side by side to shade entire rows. Choose between the Box Steel Specifications or the HSS Steel Specifications.
LETO - BOX STEEL CARPORT SYSTEM
DESIGN CRITERIA
Project specific engineering ensures the best product for your needs
COLUMNS
10 Gauge Galvanized Box Steel
BEAM
10 Gauge Galvanized Box Steel
PURLINS
Galvanized or Plain Steel
OPTIONS:
Tilt Angles Available: 0°, 10°
Site Specific Layout and Configuration
Soft Lit Under Sheeting
Lighting
Branding and Advertising
Charging Stations
LETO - HSS STEEL CARPORT SYSTEM
DESIGN CRITERIA
Modular Designs up to 110mph wind
Custom Engineering available for higher wind speeds
All codes compliant with ASCE 7-10
COLUMNS
HSS AISC Grade A-36
Coating Options: Primed or Hot Dip
Galvanized
BEAM
HSS AISC Grade A-36
Coating Options: Primed or Hot Dip
Galvanized
PURLINS
16 GA. AISI Cold Rolled G-90 Galvanized Steel
FOUNDATION (BELLOW GRADE)
Footing Type: Reinforced concrete caisson foundation or spread footing, structurally designed per soil conditions.
Concrete Strength: 2,500 psi (minimum)
Note: Structural foundation design is not included
Additional engineering services available in select locations upon request
OPTIONS:
Fixed Tilt Slope Up to 10˚
Site Specific Layout and Configuration
Hot Dip Galvanizing
Solar Racking
Soft Lit Under Sheeting
Lighting
Branding and Advertising
Charging Stations
CUT SHEETS
BENEFITS
-
HOT Dipped Galvanized or G90 steel, with Excellent Outdoor and Marine Environment Protection
-
Modular; may be constructed side by side to reduce amount of columns
-
Slide-In Solar Purlins Drastically Reduce Installation Time
-
Lighting and EV Charging Station Capable
-
Available in 0°, 5°, 10°
